Metal pipes, suitable for liquids, gases or steam

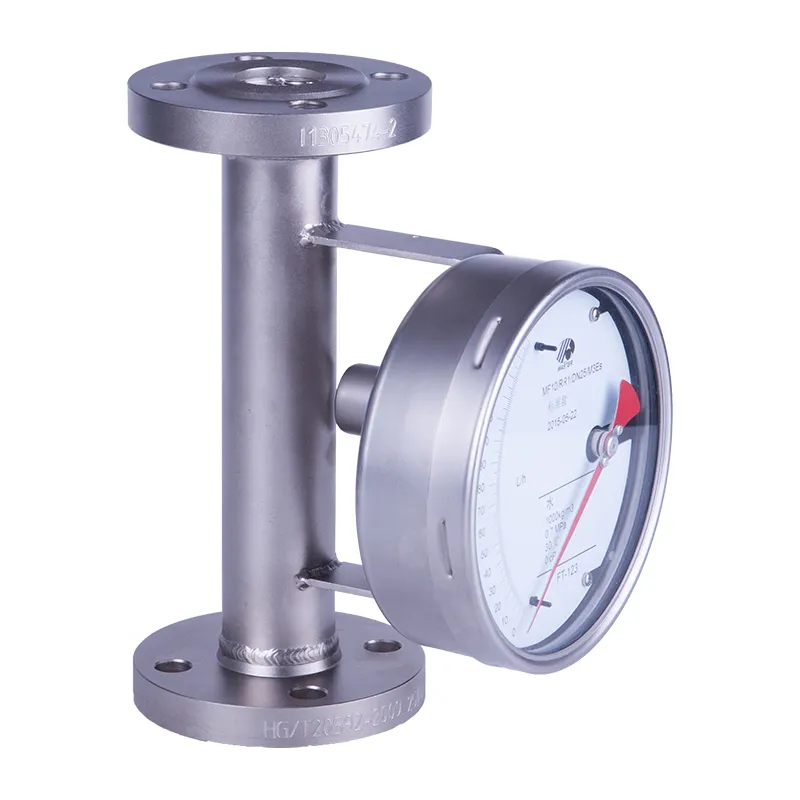

Optional mechanical indicator
Various two-wire modules 4…20 mA/HART7, FF, Profibus-PA or Ethernet-APL
Any installation location: vertical, horizontal or up and down pipes
Flange: DN15…DN200 / ½"…8”
-196…+450°C; up to 2500LB (42MPa)

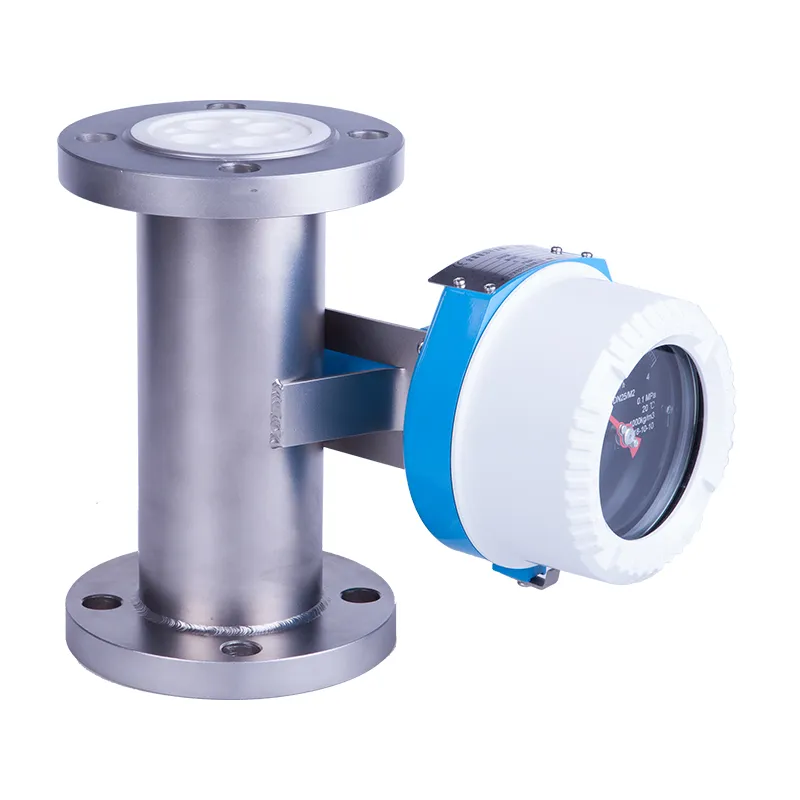

It adopts a full metal structure, magnetic isolation sensing, no additional holes, and can be used to indicate the pointer on the spot, or it can be equipped with a variety of signal transmitting and alarm switches. Stainless steel lining PTFE or PFA can also be used to measure the flow of strong acid and strong alkali fluids.

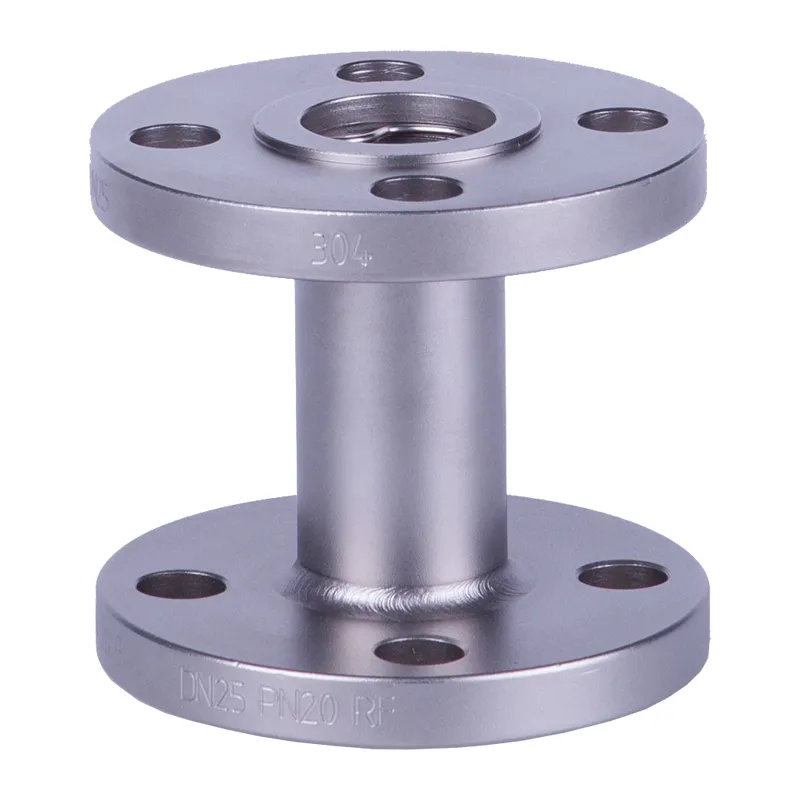

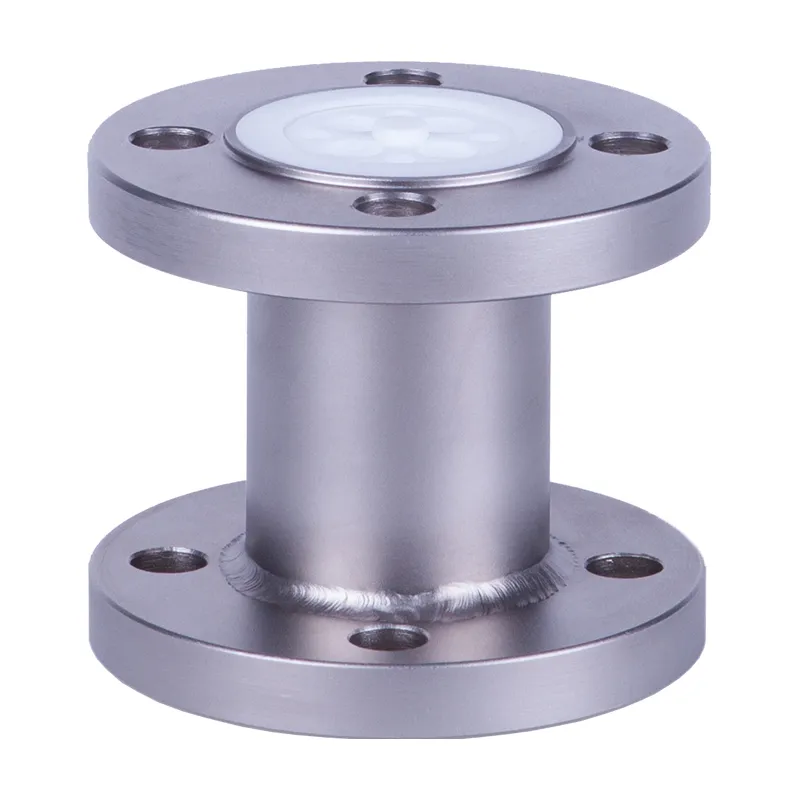

Measuring tube:
l Sturdy all-metal construction design to meet all pressure levels
l You can choose from stainless steel, Hastelloy, titanium, Inconel, Monel, PTFE, PFA, ceramic and other materials.
l Special structural design can meet the needs of high temperature use
l New structure facilitates the use of X-rays for safety inspection of welds

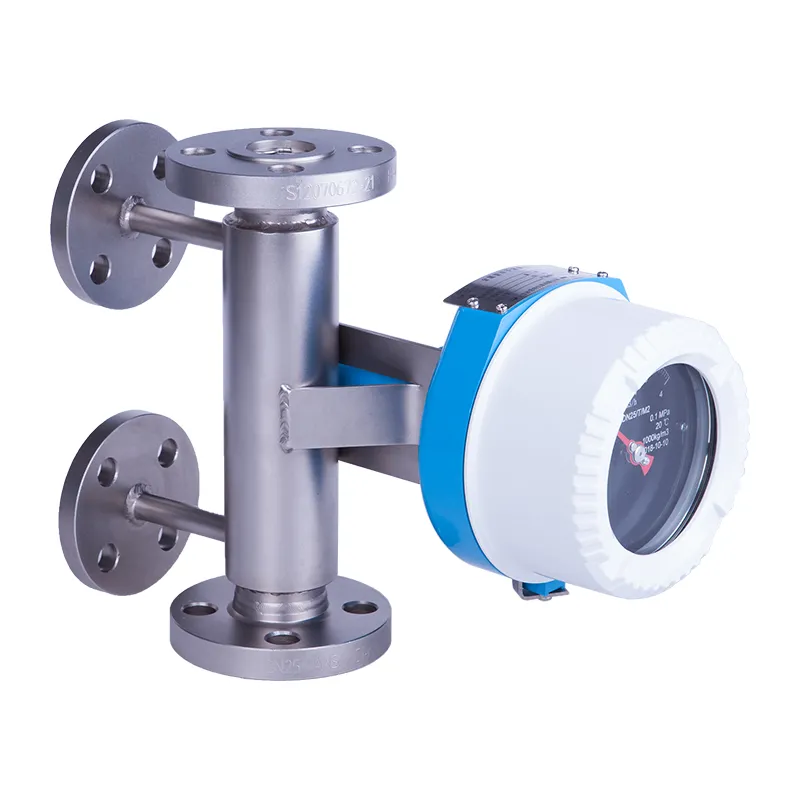

l In addition to the vertical installation structure in the bottom and out, it can meet various installation needs.
l For crystallization media or occasions where insulation is required, you can choose a jacket type
Indicator：
l Optional cast aluminum, 304 or 316 stainless steel indicator housing
l Coaxial magnetic system, powerful pointer damping function, makes the instrument run safer, more stable and reliable
l Independent junction box design, just open the rear junction box to reduce human errors
l Modular design, which can quickly add or replace transmitters to the instrument on site
l With explosion-proof button, you can adjust the transmitter parameters on site without opening the housing.

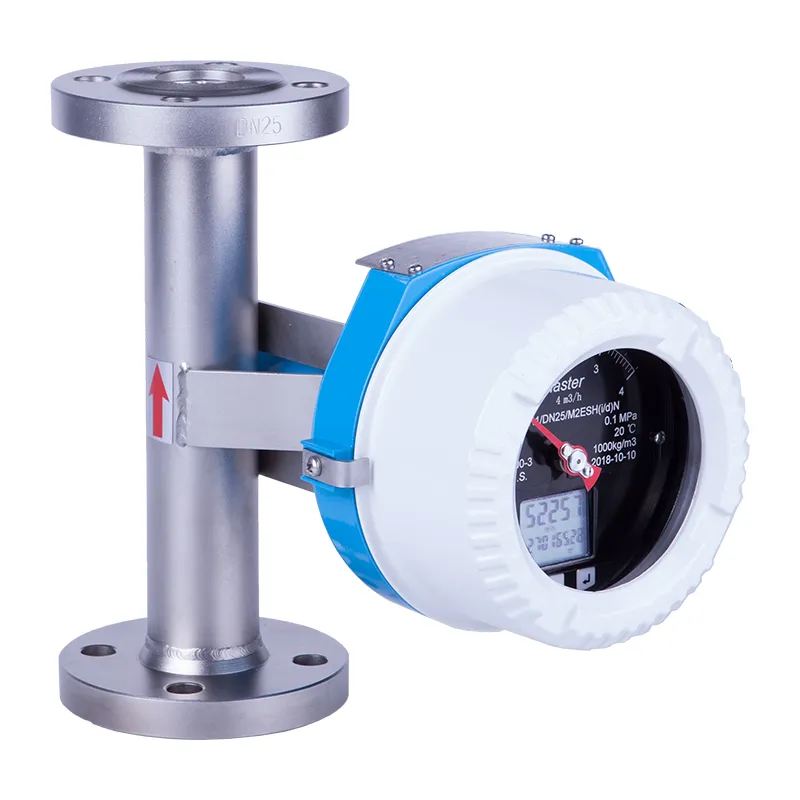

l The transmitter has the function of LCD (backlight) to display instantaneous flow and accumulated flow in the field
l Two-wire 4-20mA transmitter module can be selected
l Optional NAMUR, dry contacts and open collector alarm switches, meet different operating conditions and integrated system requirements
l Optional four-wire Modbus RTU communication, or two-wire HART7.9, FF, Profibus-PA and other communication protocols
l It has a variety of fault diagnosis and alarm functions such as sensors, memory, float jams, sensor demagnetization and flow fluctuations.
l Battery-powered models with low power consumption are available
l Explosion-proof: Exa / Exd (gas / dust), PCEC, ATEX, EAC
l Other certifications: CPA (China), PAC (Russia), SIL, EMC, PED, TSG
Metal pipes, suitable for liquids, gases or steam
Optional mechanical indicator
Various two-wire modules 4…20 mA/HART7, FF, Profibus-PA or Ethernet-APL
Any installation location: vertical, horizontal or up and down pipes
Flange: DN15…DN200 / ½"…8”
-196…+450°C; up to 2500LB (42MPa)
l Caliber range: DN15 ~ DN200
l Measurement range:water(20°C）1.6 ~ 200000 l/h:Air(0℃、0.1013 MPa）0.05~6000 m3/h
l Accuracy:±1.5 %FS(Standard) or±1.0 %FS(Special type)
l Range ratio:standard10 : 1;special20 : 1
l Pressure loss: 2 kPa ~ 30 kPa
l Process temperature:-196℃~ + 450℃
l Process pressure:PN16~PN420（Class 150 ~ Class 2500）
l Viscosity range:
DN15（K1.0 ~ 1.3）：5 mPas；DN15（K1.4 ~ 1.10）：30 mPa.s；
DN25（K2.0~2.2：80 mPa.s；DN25（K2.3~2.7）：150 mPa.s；
DN50~DN100：240mPa.s；
DN150~DN200：300mPa.s。
l Housing material: cast aluminum sprayed polyester; cast 304 or 316 stainless steel; stretch 304 or 316 stainless steel.
l Main unit/Float material: 304，316，304L，316L，304/PTFE，316/PTFE，PTFE，HC，H，
Of,ceramics,Inconel600，Monel450
l Output signal: powerless signal, two-wire system4 ~ 20mA / Heart，RS485 / Modbus, dry contact SPDT switch
l Communication protocol: Modbus RTU communication, HART7.9, FF, Profibus-PA, Ethernet-APL, etc.
l Explosion-proof level:
Exia lIC T1~T6 Ga;
AE 20 T80℃~ T440℃
EXD IIC T1 ~ T6 GB;
ExtD A21 T80℃~ T400℃
Exia IlC T4 Ga(Battery type only)
l Surge protection: Built-in surge protector surge(Impact)Immunity, line 2KV, line 4KV (level 4):You can also choose externalType
Oil and gas:
l Accurate flow monitoring of small flow gases (such as natural gas, nitrogen, carbon dioxide) in natural gas transmission and distribution systems
l Single-phase flow measurement after separation of production liquid (oil, water, and gas mixture) in oil and gas field
l Liquid fuel and additive flow monitoring in process control of refineries
Chemical Industry:
l Small flow metering and control of various corrosive liquids (such as sulfuric acid, hydrochloric acid, sodium hydroxide, etc.)
l Quantitative addition of reaction raw materials and catalysts in fine chemical production
l Safety flow monitoring of hazardous chemical conveying pipelines
Water treatment project:
l Accurate amount of chemical agents (such as flocculants, disinfectants) in industrial wastewater treatment process
l Real-time small flow monitoring and regulation in clean water system
Magnetic filter
l Installed upstream of the instrument, it can filter out magnetic permeability impurities such as welding slag and rust in the pipeline.
l It is made of stainless steel and stainless steel lined with PTFE
l Can be flange-mounted or clipped
The MF16 series microfloat flowmeter is a microfloat flow type of the MF1 series metal tube float fl...
The MFC1 series purge device is composed of a small flow metal pipe float flowmeter and a constant f...
